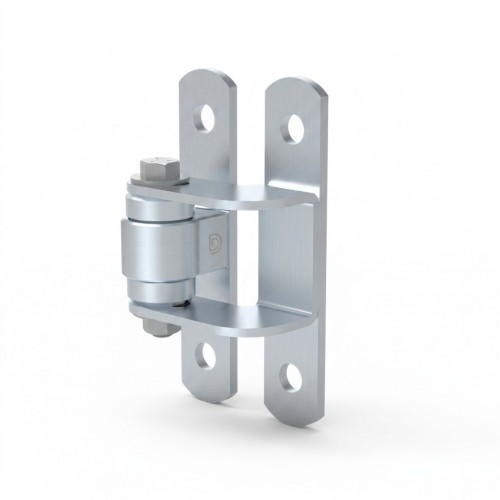

Bolt-On BadAss Heavy-Duty Adjustable Gate Hinge – 500kg Capacity

The Bolt-On BadAss gate hinge is specifically designed for gate installations where welding the hinges to the gate and end post is not an option. Featuring a fully bolt-on design, it provides a strong, secure, and convenient mounting solution for residential, commercial, and industrial gate applications. Thanks to SHUT IT's unique bushing technology, the Bolt-On BadAss delivers near-frictionless gate movement and completely maintenance-free operation, eliminating the need for greasing or ongoing servicing.

Engineered for high-performance applications, the hinge opens up to 180 degrees, providing maximum gate access while maintaining smooth and reliable operation. The adjustable design allows for up to 13mm of horizontal adjustment, enabling installers to achieve precise gate alignment and gate gaps as small as 13mm (1/2") for a professional finish.

Built with high-temperature bearings, the hinge can remain installed during the powder coating process, helping to streamline fabrication and reduce installation time. The durable bearing system is designed to withstand demanding environments while ensuring long-lasting performance.

With a load rating of 900kg per gate pair and a maximum gate weight capacity of 500kg, the Bolt-On BadAss is ideal for heavy-duty aluminium, steel, and commercial swing gates where strength, durability, and ease of installation are essential.

Features

• Sold singly
• Fully bolt-on design – no welding required
• Opens up to 180°
• Achieve gate gaps as small as 13mm (1/2")
• Horizontal adjustment up to 13mm (1/2")
• SHUT IT unique bushing design for near-frictionless movement
• Completely maintenance-free operation
• High-temperature bearings suitable for powder coating
• Smooth and reliable gate operation
• Ideal for residential, commercial, and industrial gates
• Load rating: 900kg per gate (pair)
• Maximum gate weight: 500kg
